vehicleImage

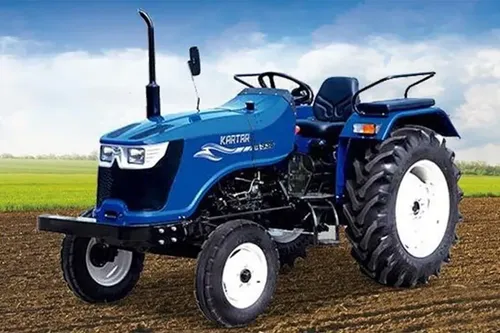

Kartar 5136

3

3 Reviews | Write & Win

*Avg. Ex-Showroom Price

₹ 7.40 Lakh - 8.00 Lakh

Monthly EMI12000*

<p>EMI Calculated basis</p> <ul className="tooltip-list" style="list-style:none!important; padding-left:0px!important"> <li>Down Payment 10% of <strong>740000</strong></li> <li>Interest Rate <strong>12.57%</strong></li> <li>Tenure <strong>7 Years</strong></li> </ul> <p>For exact EMI quotes,</p> <p>Fill in your details at CMV360 and get best loan deals</p>

EMI Calculator

*Price is for informational purposes only and the same may be subject to change, For details, please go through the T&C

Kartar 5136 Key Specifications

Horse Power

Horse Power

50 HP

Steering

Steering

Power Steering

Clutch

Clutch

280mm Dry Type; Dual

Wheel Drive

Wheel Drive

2 WD

Lifting Capacity

Lifting Capacity

1800 Kg

Gear Box

Gear Box

8 Forward + 2 Reverse

View All Specifications & Features arrow

Kartar 5136 Full Specifications

Kartar 5136 is a popular tractor in India under 50 HP. It is fitted with Diesel and has an engine capacity of 3120 cc. This tractor model is equipped with Partial Constant Mesh and 8 Forward + 2 Reverse gearbox to give an effortless performance on dry to wet farm fields. Kartar has also offered its buyers a Power Steering and 55 fuel tank capacity. The Kartar 5136 is capable of working with a harvester, potato reaper, and many other agricultural equipment. Kartar has provided Oil Immersed Brakes brakes that avoid slippage and maintain effective control over the tractor. Moreover, this Kartar tractor has a top speed of No max speed info available for this model, making it ideal for many other applications. This tractor model in India comes with factory-fitted No front tyre info available for this model front tyres and No rear tyre info available for this model rear tyres.

Fuel Type

Diesel

Power (HP)

50

Reverse Gears

2

Torque (Nm)

188

Forward Gears

8

Clutch Type

280mm Dry Type; Dual

Air Filter

Dry Type

RPM

2200

PTO Power (HP)

43.4

Transmission Type

Partial Constant Mesh

Engine Capacity (cc)

3120

Engine Type (cc)

3 Cylinder, Water Cooled, DI

Cooling

Water Cooled

Gearbox

8 Forward + 2 Reverse

No of Cylinders

3

Length (mm)

3765

Width (mm)

1868

Height (mm)

NA

Total Weight (kg)

2080

Wheelbase (mm)

2150

Ground Clearance (mm)

420

Turning Radius (mm)

NA

Fuel Tank Capacity (Ltr)

55

Lifting Capacity (Kg)

1800

3 point Linkage

ADDC

Brakes

Oil Immersed Brakes

Front Tyre Size

7.50 x 16

Rear Tyre Size

14.9 x 28

Wheel Drive

2 WD

Basic Warranty

2000 Hour or 2 Years

Application

Plough, Cultivator, Tractor Mounted Sprayer, Thresher, Rotavator, Harrow, Trailer

Forward Speed (Kmph)

2.63-33.27

Reverse Speed (Kmph)

3.63-14.51

Compare With Similar Tractor

Ex-showroom Price7.40 Lakh7.10 Lakh6.50 Lakh7.75 Lakh
No. of Cylinders3334
Lifting Capacity18001800 Kg1200 - 1850x (subject to variant level)
Gear Box8 Forward + 2 Reverseconstant meshconstant mesh
Clutch280mm Dry Type; Dualdry dual plateSingle, Dual (Optional)
Warranty2000 Hour or 2 Years5000 Hours/ 5 Year2 Year5000 Hours/ 5 Year

Kartar 5136 Similar Tractors

Eicher

Eicher 485

₹ 6.50 Lakh

Farmtrac

Farmtrac 6050 Executive 4X4

₹ 7.75 Lakh

Eicher

Eicher 333

₹ 5.45 Lakh

Eicher

Eicher 480

₹ 6.40 Lakh

Eicher

Eicher 368

₹ 5.40 Lakh

Solis

Solis 5015 E

₹ 7.20 Lakh

download-png

Kartar 5136 Brochure

Download Kartar 5136 brochure in just one click to view specification and features.

Kartar 5136 Dealers in writing-icon

No dealers available for your current city or brand, Please change the city or choose a different brand

Tractor Loan Bole Toh Sirf CMV360

calcFor Kartar 5136

Per Month EMI

Principal Amount

Interest Amount

*Interest calculated at 12.57% for 7 years period on the Base frame value

Frequently Asked Questions

The starting price of the Kartar 5136 is 740000 (excluding registration, insurance, and RTO) for base variants but for the top variant, its prices reach 800000 (excluding registration, insurance, and RTO) Click here Kartar 5136 to check the on-road price for the Kartar 5136

The on-road price for Kartar 5136’s top variant in null is Rs 740000. The on-road price is the sum of the ex-showroom price of the tractor model, RTO registration, insurance, and other expenses.

Kartar 5136 is available in a single variant: 5136.

There is no max speed available right now.

Kartar 5136 has Diesel that produces the max power of 50 HP. Moreover, it is fitted with Partial Constant Mesh that enhances the engine power and productivity. Benefits of having high engine power: Tractors with higher engine power generally have higher top speed and better lifting capacity.

ModelTransmissionMax Power
Kartar 5136Partial Constant MeshDiesel

The PTO power of the Kartar 5136 is 43.4 HP. Why PTO power is important: Power take-off (PTO) is the mechanism that transfers the tractor’s power into farm equipment so that it can function without requiring to have its own engine. For example, PTO can help farm equipment like threshers to function properly.

Kartar 5136 is fitted with a Partial Constant Mesh to improve the drive experience.

Kartar 5136 features the ground clearance of 420 mm.

Kartar 5136 offers 55 ltr for long hours performance with a single fill.

Kartar 5136 has 3765 mm of length, 1868 mm of width, NA mm of height, and 2150 mm of wheelbase. Kartar 5136 has ground clearance of 420 mm.

Kartar 5136 Dimensions
Length3765 mm
Width1868 mm
HeightNA mm
Wheelbase2150 mm
Ground Clearance420 mm

Kartar 5136 has a No warranty available for this model. years warranty for unlimited km, making it ideal for buyers who use their tractor regularly. Click here Kartar 5136 to get more details about the Kartar 5136.

Kartar 5136 is a 50 HP category tractor in India, which competes with Farmtrac 60,Farmtrac 6050 Executive 4X4,John Deere 5210.
