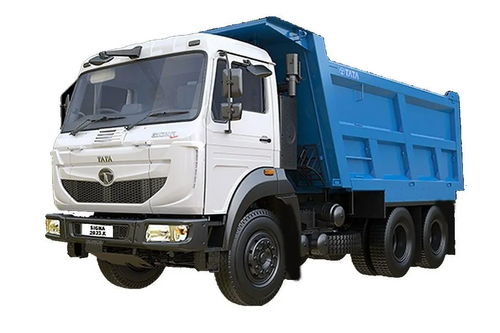

Tata Signa 2823.K HD 9S

3

0 Reviews | Write & Win

*Avg. Ex-Showroom Price

₹ 42.27 Lakh - 45.47 Lakh

Monthly EMI ₹ 12,000*

<p>EMI Calculated basis</p> <ul class="tooltip-list" style="list-style:none!important; padding-left:0px!important"> <li>Down Payment 90% of <strong>4227000</strong></li> <li>Interest Rate <strong>12.57%</strong></li> <li>Tenure <strong>7 Years</strong></li> </ul> <p>For exact EMI quotes,</p> <p>Fill in your details at CMV360 and get best loan deals</p>

EMI Calculator

*Price is for informational purposes only and the same may be subject to change, For details, please go through the T&C

Tata Signa 2823.K HD 9S Key Specifications

Engine Capacity

Engine Capacity

5600 cc

Power

Power

219 HP

No Of Tyres

No Of Tyres

10

GVW

GVW

28000 Kg

Payload

Payload

--

Mileage

Mileage

2.75-3.75 kmpl

View All Specifications & Features arrow

Tata Signa 2823.K HD 9S Highlights

Tata Signa 2823.K HD 9S is a construction tipper truck manufactured and designed by Tata Motors. It has a heavy-duty powertrain, comfort features, and premium components. If you are willing to buy the best tipper truck under 40 lakh, reading this highlight may help you.

Engine Details

Tata Motors has provided a heavy-duty powertrain that works on diesel fuel. It features a Cummins ISBe 5.6L BS6 engine that can generate a displacement of 5600 cc. Moreover, this engine also generates top-class engine power of 219 HP and a torque of 850 Nm. It also has a 380 mm dia single plate dry friction clutch and manual transmission.

Tata Signa 2823.K HD 9S Features

  • Tata Motors gives customizable body options to buyers.
  • It has a semi-elliptical leaf spring front suspension.
  • The rear suspension of this cement tipper truck features TML bogie suspension.
  • It has a gross vehicle weight of 28,000 kg and a fuel tank capacity of 300 liters.
  • The ground clearance of this truck is 250 mm, and the wheelbase of 3880mm.
  • It has new iCGT brakes and 10 tires in 295/95D20 size.
  • This tipper truck provides average mileage of 2.75-3.75 kmpl.
  • The payload capacity of this top-selling tipper truck in India is 16,000 kg.

Signa 2823.K HD 9S Variants

Tata Signa 2823.K HD 9S comes in a single CAB truck model but offers a customizable body option.

Competitors

Tata Signa 2823.K HD 9S competes with Leyland 2820 Tipper, Mahindra Blazo X 28 Tipper, and BharatBenz 2823C.

Tata Signa 2823.K HD 9S Price in India

The on-road price of Tata Signa 2823.K HD 9S starts from Rs 36,26,000. All in all, it's a promising tipper truck widely used for construction tipper requirements.

Tata Signa 2823.K HD 9S Variants

VariantsEx-showroom Price
Tata Signa 2823.K HD 9S CAB
219 HP, Manual, 5600 cc
NaNGet March Offer

Tata Signa 2823.K HD 9S Full Specifications

Tata Signa 2823.K HD 9S is a popular truck in India under 219 HP. It is fitted with Diesel and has an engine capacity of 5600 cc. This truck model is equipped with Manual and 9-Speed gearbox to give an effortless performance on dry to wet farm fields. Tata has also offered its buyers a No steering info available for this model and 300 Ltr fuel tank capacity.

Fuel Type

Diesel

Power

219

Torque

850

Clutch Type

380 mm Dia Single Plate Dry Friction Organic Lining

Emission Norm

BS-VI

Type

Manual

Engine Capacity

5600

Engine Type

CUMMINS ISBe 5.6L

Gearbox

9-Speed

No of Cylinders

6

Gross Vehicle Weight

28000

Wheelbase

3880

Ground Clearance

250

Fuel Tank Capacity

300

Body Type

Customizable body

Cabin Type

Day Cabin

Chassis

Chassis with Cabin

Suspension - Front

Semi elliptical leaf spring suspension

Suspension - Rear

TML bogie suspension

Brakes

New iCGT Brakes

Front Tyre Size

295/95 D20

Rear Tyre Size

295/95 D20

No of Tyres

10

Parking Brake

Yes

Front Axle

Heavy duty forged I beam reverse eliot type

Rear Axle

Single reduction,heavy duty, hypoid gears, with differential lock

Warranty

6 Years / 6000 Hours

Mileage (kmpl)

2.75-3.75

Compare With Similar Truck

Ex-showroom Price42.27 Lakh30.87 Lakh37.80 Lakh30.64 Lakh
No. of Cylinders6666
Gear Box9-Speed6-Speed6-Speed6-Speed
Clutch380 mm Dia Single Plate Dry Friction Organic Lining395mm Single dry plate hydraulic control395mm Single dry plate hydraulic control395mm Single dry plate hydraulic control
Warranty6 Years / 6000 Hours6 Years / 6000 Hours6 Years / 6000 Hours6 Years / 6 Lakh Km

View All Comparison

arrow

Tata Signa 2823.K HD 9S Similar Trucks

BharatBenz

BharatBenz 1923C

₹ 30.87 Lakh

BharatBenz

BharatBenz 2823C

₹ 37.80 Lakh

BharatBenz

BharatBenz 2823R

₹ 30.64 Lakh

BharatBenz

BharatBenz 2828C

₹ 36.86 Lakh

BharatBenz

BharatBenz 2828CH

₹ 48.77 Lakh

BharatBenz

BharatBenz 3523R

₹ 36.26 Lakh

download-png

Tata Signa 2823.K HD 9S Brochure

Download Tata Signa 2823.K HD 9S brochure in just one click to view specification and features.

Latest News, Reviews and Advice from our Experts

Statistics for Mini Trucks Sales in the Last 3 Years

Statistics for Mini Trucks Sales in the Last 3 Years

8 Best 4x4 Truck in India To Grow Your Business

8 Best 4x4 Truck in India To Grow Your Business

The Expo will include India's first commercial EV with a manual gearbox

The Expo will include India's first commercial EV with a manual gearbox

EV Sales to Grow 90 Crore Units in India By 2027

EV Sales to Grow 90 Crore Units in India By 2027

July 2022 Auto Sales: Tata Motors reports good CV sales in July.

July 2022 Auto Sales: Tata Motors reports good CV sales in July.

Tata Signa 2823.K HD 9S Dealers in writing-icon

No dealers available for your current city or brand, Please change the city or choose a different brand

Truck Loan Bole Toh Sirf CMV360

calcFor Tata Signa 2823.K HD 9S

Per Month EMI
₹0

Principal Amount
₹21,10,000

Interest Amount
₹0

*Interest calculated at 12.57% for 7 years period on the Base frame value

Frequently Asked Questions

The starting price of the Tata Signa 2823.K HD 9S is 42.27 Lakh (excluding registration, insurance, and RTO) for base variants but for the top variant, its prices reach 45.47 Lakh (excluding registration, insurance, and RTO) Click here Tata Signa 2823.K HD 9S to check the on-road price for the Tata Signa 2823.K HD 9S

Tata Signa 2823.K HD 9S is one of the fuel efficient dumper trucks in India. It provides 2.75-3.75 kmpl on city and highway roads and maintains a superior driving experience.

Tata Signa 2823.K HD 9S comes in a single variant in India, and the model name is CAB. It’s available in 28000 Kg..

VariantsGVWEx. Showroom Price
Tata Signa 2823.K HD 9S CAB28000 KgNaN

We’ve not registered the maximum speed of Tata Signa 2823.K HD 9S

Tata Signa 2823.K HD 9S is fitted with a highly reliable Diesel engine that has the capacity to produce 219 HP engine power. Benefits of High Engine Power: Trucks with high engine power mostly deliver hurdle-free performance in varied road conditions, and they also move comparatively higher payloads from one place to another.

ModelTransmissionMax Power
Tata Signa 2823.K HD 9SManual219 HP

No, Tata has provided Manual transmission in Tata Signa 2823.K HD 9S that fits well with its engine and helps the driver get better drive performance.

Tata Signa 2823.K HD 9S has a wheelbase of 3880 mm.

The ground clearance of the Tata Signa 2823.K HD 9S truck is 250 mm.

Tata Signa 2823.K HD 9S is designed using the latest technology and innovation solutions to give it an ideal dimension to ensure it performs well. It has undefined length, No height is available for this model, No height is available for this model height, 3880 wheelbase, and Tata Signa 2823.K HD 9S has ground clearance of 250 ground clearance.

Tata Signa 2823.K HD 9S Dimensions
Lengthundefined mm
WidthNo width is available for this model
HeightNo height is available for this model.
Wheelbase3880
Ground Clearance250

Tata Signa 2823.K HD 9S is launched in the Indian market in a single colour option: White.

Tata has provided a 6 Years / 6000 Hours warranty on its popular truck, Tata Signa 2823.K HD 9S.

Tata Signa 2823.K HD 9S is a top end truck under 28000 Kg GVW category and features a 5600 HP engine, which makes it a top competitor of No competitor available.
