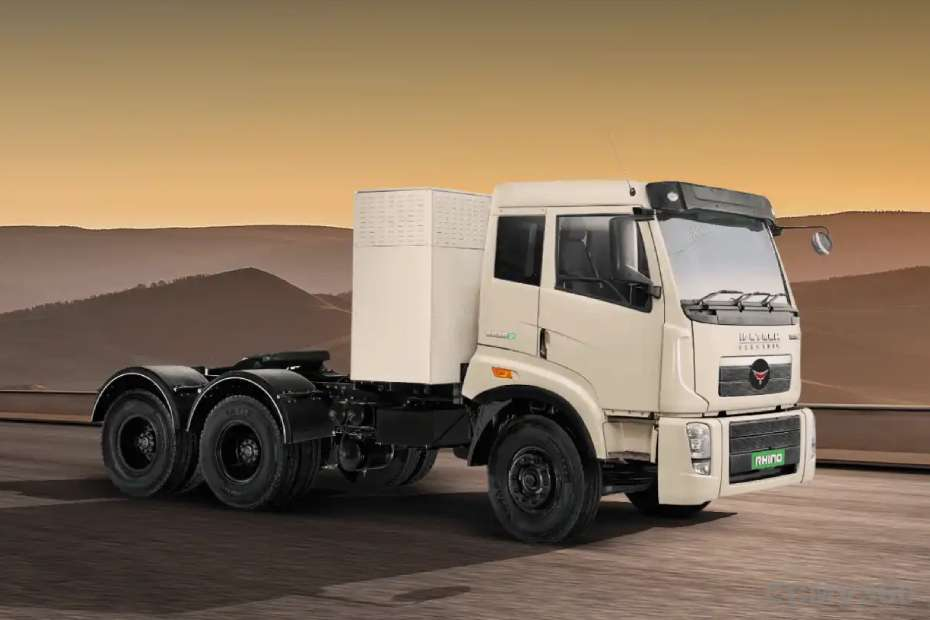

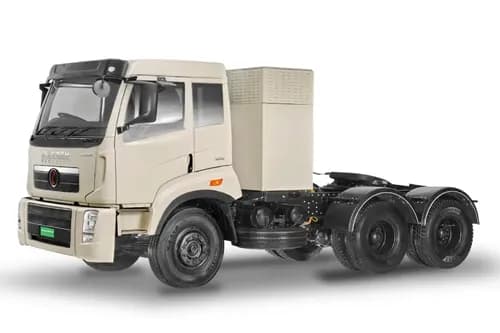

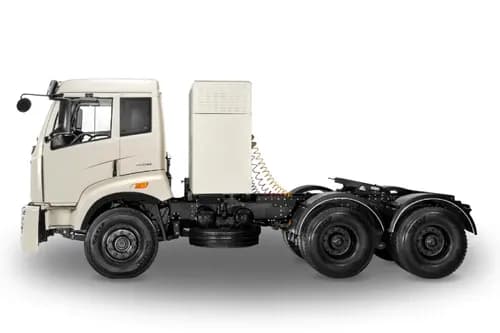

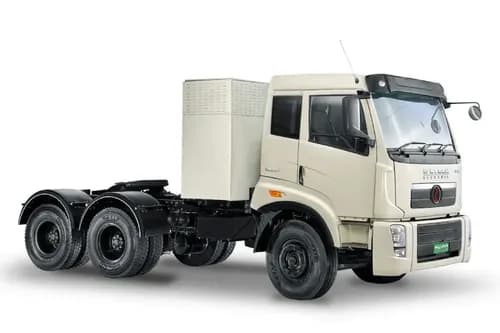

IPLTech Electric Rhino 5536E

Images

IPLTech Electric Rhino 5536E

0

|

Write & Win

Price Coming Soon

info-icon

Get complete price break up & offers

IPLTech Electric Rhino 5536E Key Specs and Features

Battery Capacity-image

Battery Capacity

258 Kwh

Charging Time-image

Charging Time

60 mins (State of charge 20 to...

Power-image

Power

380 HP

GVW-image

GVW

55000 Kg

Ad

Ad

IPLTech Electric Rhino 5536E Full Specifications

Gross Vehicle Weight (Kg)

55000

Wheelbase (mm)

3850

Battery Capacity (Kwh)

258

Max Speed (Km/h)

NA

Driving Range (Km)

189 km (single charge) Under standard test conditions. One side load, One side empty.

Charging Time (Hours)

60 mins (State of charge 20 to 100 % Charging)

Battery Type

LFP (Lithium Iron Phosphate)

Gradeability (%)

28

Warranty

10 Years / 9 Lakh Km

Parking Brake

Yes

Front Axle

Meritor - 7T Heavy Duty Forging Type

Rear Axle

Meritor - 21T SRT Tandem Axle

Body Type

Trailer Body

Cabin Type

Sleeper Cabin

Chassis Type

Conventional type, heavy duty 3 layer chassis frame (285 mm x 65 mm x 7 mm)

Suspension - Front

Parabolic Leaf Spring

Suspension - Rear

Tata Hendrickson Bogie Suspension

Fuel Type

Electric

Power (HP)

380

Torque (Nm)

2000

Clutch Type

430 mm dia dry friction

Emission Norm

Zero Emission

Transmission Type

Automated Manual Transmission

Motor Type

PMSM - Permanent Magnet Synchronous Motor (Best in class)

Gearbox

6 Speed AMT

Adjustable Driver Seat

Yes

Seat Belts

Yes

Seat Type

Standard Seats

Driver Information Display

Yes

Tubeless Tyres

Radial Tube Tyres

Seating Capacity

Driver + 1 Passenger

No of Tyres

10

Front Tyre Size

295/90R20 Radial Tube Tyres

Rear Tyre Size

295/90R20 Radial Tube Tyres

Compare With Similar Truck

IPLTech Electric Rhino 5536E
Tata Ace EVTata Ace EV 1000Mahindra ZEOSwitch Mobility IeV3Switch Mobility IeV4EKA K1.5
IPLTech Electric Rhino 5536ETata Ace EVTata Ace EV 1000Mahindra ZEOSwitch Mobility IeV3Switch Mobility IeV4EKA K1.5
Price Coming Soon₹ 10.20 Lakh₹ 11.27 Lakh₹ 7.50 Lakh₹ 12.32 Lakh₹ 15.29 Lakh₹ 16.30 Lakh
Fuel Type
ElectricElectricElectricElectricElectricElectricElectric
Battery Capacity (kwh)
25821.321.318.425.632.232
Charging Time (hours)
60 mins (State of charge 20 to 100 % Charging)Fast charging in 105 mins, Home Charging in 7 Hours7DC Fast Charging: 100 km range in 1 hour, AC Fast Charging: Full charge in 3 hours, Home Charging: Takes about 7 hoursDC charging-Fast Charging 55 mins (0 to 80%), AC charger (32A)-3 hours 30 mins, AC charger (15A)-8 hours 15 mins8 Hours (Approx)4
Power (HP)
380363640538080
GVW (kg)
5500018402120Not available259034902510
Payload (kg)
-60010007651250 (FSD)1700Not Available
Currently ViewingRhino 5536E vs Ace EVRhino 5536E vs Ace EV 1000Rhino 5536E vs ZEORhino 5536E vs IeV3Rhino 5536E vs IeV4Rhino 5536E vs K1.5

Ad

Ad

IPLTech Electric Rhino 5536E Similar Trucks

Tata Ace EV

Tata Ace EV

Ex-showroom Price
₹ 10.20 Lakh
Tata Ace EV 1000

Tata Ace EV 1000

Ex-showroom Price
₹ 11.27 Lakh
Mahindra ZEO

Mahindra ZEO

Ex-showroom Price
₹ 7.50 Lakh
Switch Mobility IeV3

Switch Mobility IeV3

Ex-showroom Price
₹ 12.32 Lakh
Switch Mobility IeV4

Switch Mobility IeV4

Ex-showroom Price
₹ 15.29 Lakh
EKA K1.5

EKA K1.5

Ex-showroom Price
₹ 16.30 Lakh
download-png

IPLTech Electric Rhino 5536E Brochure

Download IPLTech Electric Rhino 5536E brochure in just one click to view specification and features.

Ad

Ad

Frequently Asked Questions


IPLTech Electric Rhino 5536E in India starts from Invalid input (excluding RTO, insurance, and registration). Click here to check the on-road price for the IPLTech Electric Rhino 5536E.

IPLTech Electric Rhino 5536E is one of the fuel efficient trailer trucks in India. It provides 189 kmpl on city and highway roads and maintains a superior driving experience.

IPLTech Electric Rhino 5536E is introduced in 0 variants such as .

The maximum speed of a IPLTech Electric Rhino 5536E truck is NA km/h.

IPLTech Electric Rhino 5536E is fitted with a highly reliable not available engine that has the capacity to produce No engine power available for this model. engine power. Benefits of High Engine Power: Trucks with high engine power mostly deliver hurdle - free performance in varied road conditions, and they also move comparatively higher payloads from one place to another.

Yes, the IPLTech Electric Rhino 5536E is available in an automatic transmission type to deliver better performance in most applications.

IPLTech Electric Rhino 5536E has a wheelbase of 3850 mm.

We’ve not registered ground clearance for IPLTech Electric Rhino 5536E

IPLTech Electric Rhino 5536E is designed using the latest technology and innovation solutions to give it an ideal dimension to ensure it performs well.It has no length is available for this model , No width is available for this model, No height is available for this model height, 3850 wheelbase, and IPLTech Electric Rhino 5536E has ground clearance of We’ve not registered ground clearance for IPLTech Electric Rhino 5536E ground clearance.

IPLTech Electric has introduced IPLTech Electric Rhino 5536E in undefined Colors: undefined.

IPLTech Electric has provided a 10 Years / 9 Lakh Km warranty on its popular truck, IPLTech Electric Rhino 5536E.

IPLTech Electric Rhino 5536E is a top end truck under 55000 Kg GVW category and features a We’ve not registered engine power for IPLTech Electric Rhino 5536E engine, which makes it a top competitor of Tata Ace EV,Tata Ace EV 1000,Mahindra ZEO,Switch Mobility IeV3,Switch Mobility IeV4,EKA K1.5
