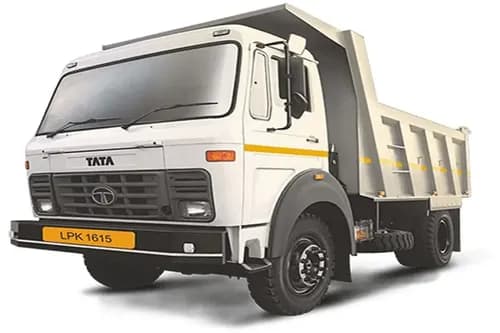

Tata LPK 1615

Fuel Type

Diesel

Power (HP)

158

Torque (Nm)

600

Clutch Type

352 mm, Single plate Dry friction type

Emission Norm

BS-IV

Type

Manual

Engine Capacity (cc)

5883

Engine Type

CUMMINS ISBe 5.9 BS4

Gearbox

6 Forward + 1 Reverse

No of Cylinders

6

Max Speed (km/h)

-

Mileage (kmpl)

-

Gradeability (%)

30

Body Type

Box Body

Cabin Type

Day cab

Chassis

-

Tiltable Cabin

-

Suspension - Front

Leaf Spring

Suspension - Rear

Leaf Spring

Turning Radius (mm)

6541

Ground Clearance (mm)

248

Fuel Tank Capacity (Ltr)

160

Width (mm)

2468

Gross Vehicle Weight (Kg)

16200

Length (mm)

6295

Height (mm)

3285

Wheelbase (mm)

3580

Kerb Weight (Kg)

-

Payload (Kg)

-

Brakes

Full Air S-Cam with Automatic Adjuster

ABS

Yes

No of Tyres

6

Front Tyre Size

10R20 - 16 PR

Rear Tyre Size

10R20 - 16 PR

Power Steering

Yes

Adjustable Driver Seat

Yes

Parking Brake

Yes

Front Axle

Extra Heavy Duty Forged I Beam, Reverse Elliot Type

Rear Axle

RA 109 RX

Telematics

Yes

Seat Belts

Yes

Air Conditioner (A/c)

No

Cruise Control

No

Seat Type

Standard

Arm-rest

No

Driver Information Display

-

Tiltable Steering

-

Tubeless Tyres

No

Navigation System

-

Seating Capacity

Driver + 2 Passenger

Hill Hold

-
