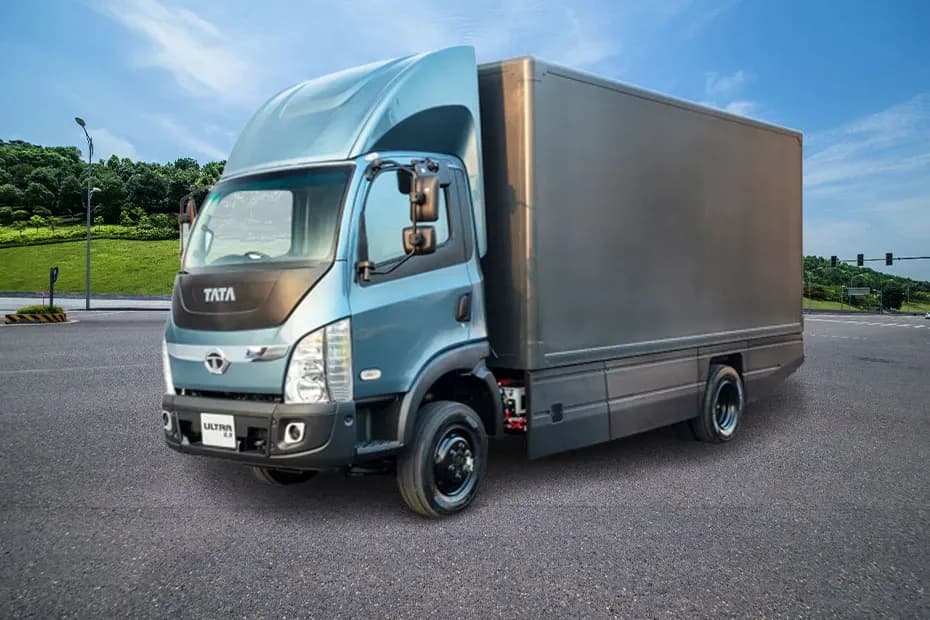

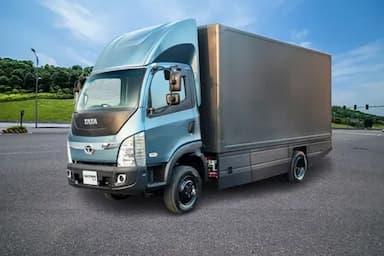

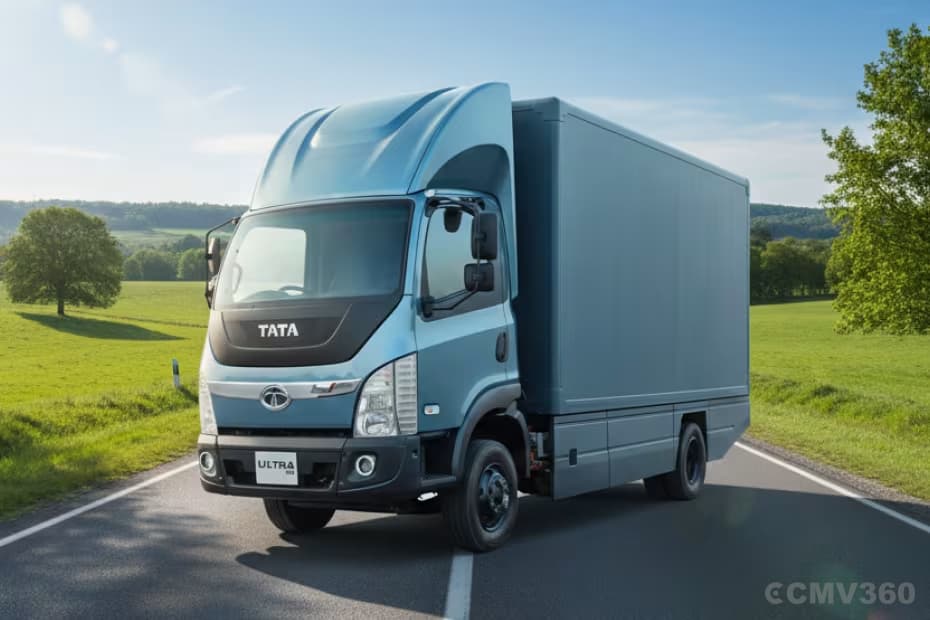

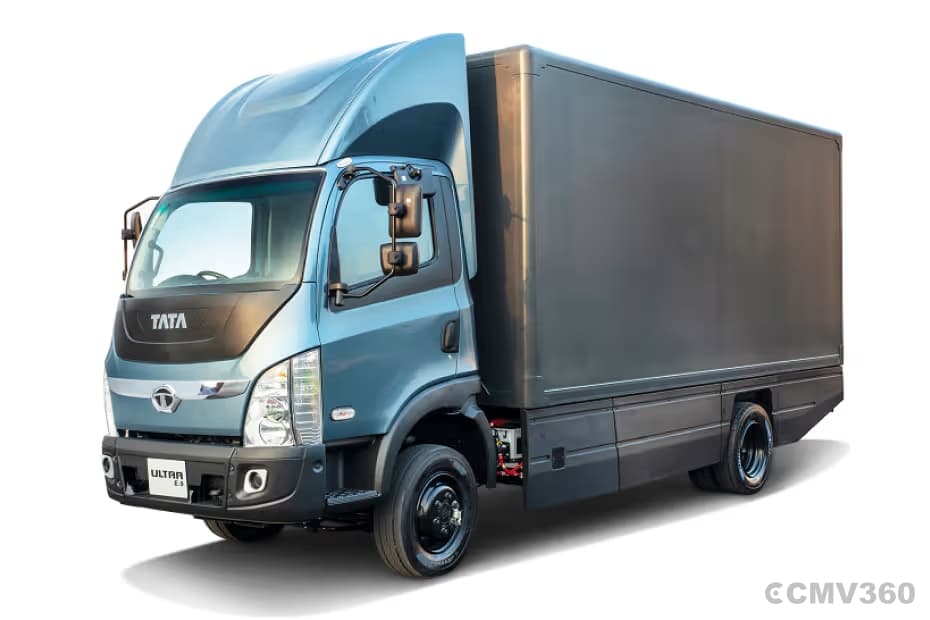

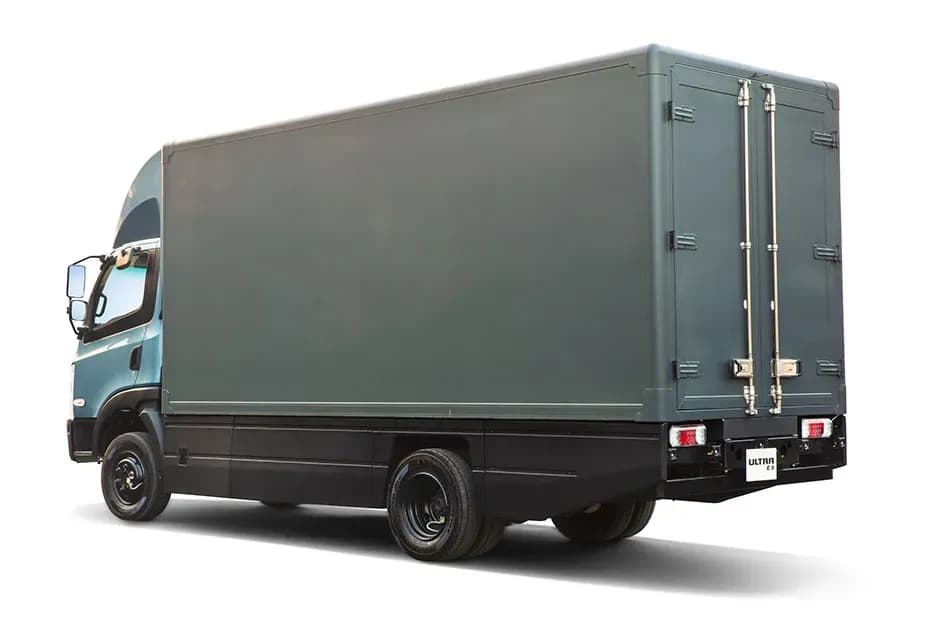

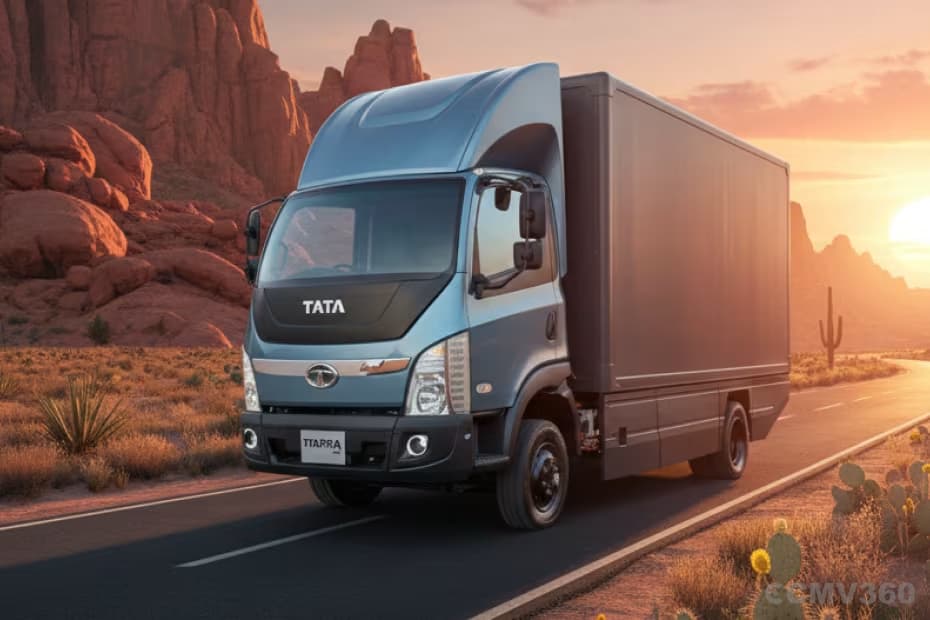

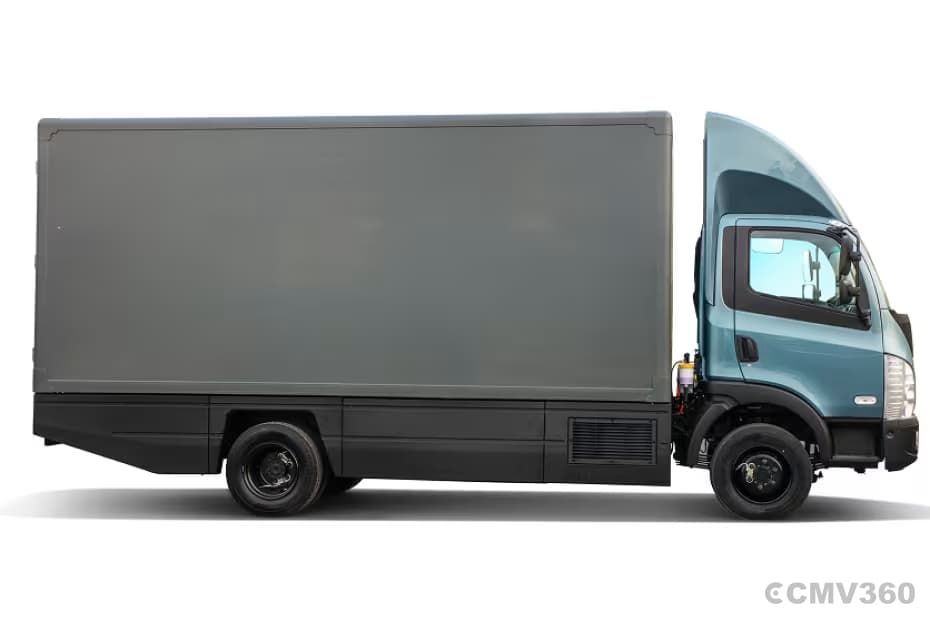

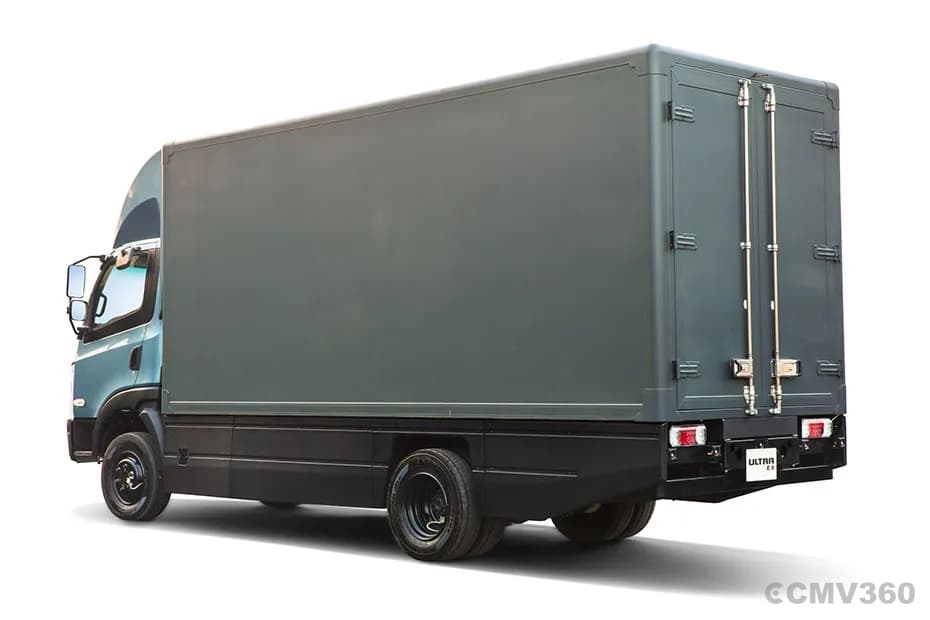

Tata Ultra E.9 Key Specs and Features
Charging Time
1.5-2 hrs (DC charging) Hours
Power
335 HP
GVW
9000 Kg
Payload
4050 Kg
Tata Ultra E.9 Trucks - Highlights
Tata Ultra E.9 Electric Trucks - Highlights
Ad
Ad
Tata Ultra E.9 Full Specifications
Load Body Size
17ft, Container Body
Gross Vehicle Weight (Kg)
9000
Wheelbase (mm)
3920
Kerb Weight (Kg)
4950
Payload (Kg)
4050
Max Speed (km/h)
70
Range(Km)
120-150
Gradeability (%)
23
Charging Time
1.5-2 hrs (DC charging)
Charger Type
CCS2 protocol
Parking Brake
Yes
Rear Axle
Banjo type, e-axle
Cabin Type
Ultra Sleek 1.9m wide
Suspension - Front
Parabolic with shock absorbers
Suspension - Rear
Parabolic with shock absorbers
Turning Radius (mm)
7700
Fuel Type
Electric
Power (HP)
335
Torque (Nm)
950
Emission Norm
Zero Tailpipe
Transmission Type
Automatic (Direct Drive)
Engine Type
3-phase permanent magnet type traction motor
Adjustable Driver Seat
Yes
Battery
Lithium-ion batteries , Capacity 110-148 kWh
Seat Belts
Yes
Air Conditioner (A/c)
Yes
Seat Type
Standard
Driver Information Display
Yes
Tubeless Tyres
Yes
Seating Capacity
Driver + 2 PASSENGER
Brakes
Hydraulic Disc - Disc brakes, ESC+EBS
No of Tyres
6
Front Tyre Size
225/75R 17.5 Tubeless radial (twin tyre)
Rear Tyre Size
225/75R 17.5 Tubeless radial (twin tyre)
Compare With Similar Truck
 |  |  |  |  |  |  |
| Tata Ultra E.9 | Mahindra ZEO | Switch Mobility IeV3 | Switch Mobility IeV4 | EKA K1.5 | Montra Electric Eviator | Euler StormEV LongRange200 |
| Price Coming Soon | ₹ 7.50 Lakh | ₹ 12.32 Lakh | ₹ 15.29 Lakh | ₹ 16.30 Lakh | ₹ 16.00 Lakh | ₹ 9.00 Lakh |
Fuel Type | ||||||
| Electric | Electric | Electric | Electric | Electric | Electric | Electric |
Battery Capacity (kwh) | ||||||
| - | 18.4 | 25.6 | 32.2 | 32 | 43.2 | 30 |
Charging Time (hours) | ||||||
| 1.5-2 hrs (DC charging) | DC Fast Charging: 100 km range in 1 hour, AC Fast Charging: Full charge in 3 hours, Home Charging: Takes about 7 hours | DC charging-Fast Charging 55 mins (0 to 80%), AC charger (32A)-3 hours 30 mins, AC charger (15A)-8 hours 15 mins | 8 Hours (Approx) | 4 | AC Charging Time (on 3.3 Kwh Charger)-10 hr 40 min, AC Charging Time (on 7.4 Kwh Charger)-5 hr 15 min & DC Charging Time (on 30 Kw Charger)-1 hr 17 min | Fast Charge of 100 Km in 15 Minutes |
Power (HP) | ||||||
| 335 | 40 | 53 | 80 | 80 | 107 | 46.93 |
GVW (kg) | ||||||
| 9000 | Not available | 2590 | 3490 | 2510 | 3490 | 2990 |
Payload (kg) | ||||||
| 4050 | 765 | 1250 (FSD) | 1700 | Not Available | 1707 | 1250 |
| Currently Viewing | Ultra E.9 vs ZEO | Ultra E.9 vs IeV3 | Ultra E.9 vs IeV4 | Ultra E.9 vs K1.5 | Ultra E.9 vs Eviator | Ultra E.9 vs StormEV LongRange200 |
