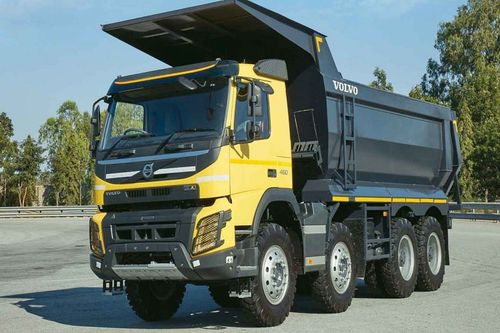

Volvo FMX 460 8x4 20.3 cu.m
|
Write & Win
Price Coming Soon
Last Recorded Price
Volvo FMX 460 8x4 20.3 cu.m generation has been discontinued
Volvo FMX 460 8x4 20.3 cu.m Key Specs and Features
Volvo FMX 460 8x4 20.3 cu.m Trucks - Highlights
Volvo FMX 460 8x4 20.3 cu.m Dumper Trucks - Highlights
Read More
Ad
Ad
Volvo FMX 460 8x4 20.3 cu.m Full Specifications
Bore
131 mm x 158 mm
Cooling type
Oil Cooled
Fuel Type
Diesel
Power
460
Reverse Gears
4
Torque
2300
Forward Gears
12
Clutch Type
Power assisted push type single plate friction disc
Differential Lock
Yes
Type
Manual
Engine Capacity
12800
PTO Clutch Type
Clutch dependent gearbox mounted power take-off
Number of Gears
12 forward + 4 reverse
Gearbox
I-Shift (Automated range / splitter gearbox)
No of Cylinders
6
Cabin Type
FMX day cabin
Chassis
Chassis with Cabin
Suspension - Front
Front Parabolic suspension with S-shaped leaf geometry
Suspension - Rear
Heavy duty bogie suspension with conventional multi-leaf spring Rubber journalled V-stays
No Of Doors
2
Hydraulics
Heavy duty front mounted telescopic cylinder
Turning Radius
11600
Gross Vehicle Weight
35000
Length
9028
Width
2590
Height
3755
Ground Clearance
390
Fuel Tank Capacity
290
Brakes
Dual line air brake system
Brakes - Rear
Electronic Brake System (EBS) Dual-line air brake system with ABS
Front Tyre Size
12 x 24
Rear Tyre Size
12 x 24
No of Tyres
12
Wheels Size
24 inch
Adjustable steering
Yes
Power Steering
Yes
Driver's seat heigth adjust
Yes
Steering
Hydraulic power steering
Tiltable Cabin
1
Parking Brake
Yes
Rear Axle
Drive tandem hub reduction axle with four planetary gears
Shock Absorbers
Rubber journalled V-stays, reaction rods, stabiliser and two shock absorbers
Warranty
12 Months
Mileage (kmpl)
2.25-3.25
