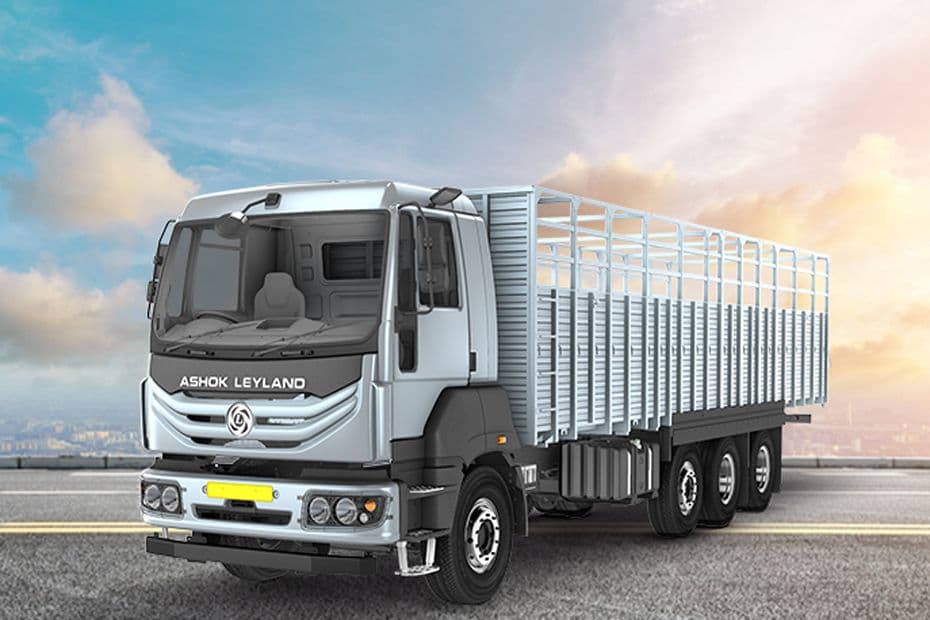

Ashok Leyland 3520 8x2 LA MAV

★★★★★

0 Reviews | Write & Win

*Avg. Ex-Showroom Price

₹ 37.27 Lakh - 40.70 Lakh

Monthly EMI ₹ 12,000*

EMI Calculator

*Price is for informational purposes only and the same may be subject to change, For details, please go through the T&C

Ashok Leyland 3520 8x2 LA MAV Key Specifications

Engine Capacity

5660 cc

Power

200 HP

No Of Tyres

GVW

35000 Kg

Payload

Mileage

3.5 kmpl

View All Specifications & Features

Ashok Leyland 3520 8x2 LA MAV Highlights

Ashok Leyland 3520 8x2 LA MAV is a popular Ashok Leyland model. The H series CRS with iGen6 Technology Engine in the Ashok Leyland 3520 8x2 LA MAV produces 200 horsepower. It has a single dry plate with a diameter of 380 mm, an organic clutch with an air-assisted hydraulic booster clutch, and a manual transmission. The truck's top speed is 80 mph, and its turning radius is 9800 feet. The tyre dimensions are 295/90R20 - 16 PR for the front and 295/90R20 - 16 PR for the rear. Air Brakes are available on the Ashok Leyland 3520 8x2 LA MAV. Tubeless tyres are not available in this truck; however, ABS is available. Standard seating is provided by the company.

The Ashok Leyland 3520 is a rigid truck with four axles and twelve tyres that is part of the newly announced AVTR modular platform, which features a new powertrain and durable aggregates. This multi-axle 35,000 kg gross weight heavy-duty truck is one of the most popular sectors in the business of long-distance transportation.

Ashok Leyland 3520 8x2 LA MAV Features

The fuel capacity of the Ashok Leyland 3520 8x2 LA MAV is 375 Ltr.
The Ashok Leyland 3520 8x2 LA MAV has a GVW of 35000 kg.
The truck's engine capacity is its maximum power and torque. The 3520 8x2 LA MAV has a maximum power of 200 hp, a maximum torque of 700 Nm, and an engine capacity of 5660 cc.
The Ashok Leyland 3520 8x2 LA MAV has a 5750 mm wheelbase.
A truck's gradeability is its ability to climb slopes. Trucks with good gradeability can transport cargo in difficult terrain. The gradeability of the Ashok Leyland 3520 8x2 LA MAV is 14.05%.
The Ashok Leyland 3520 8x2 LA MAV has 200 horsepower.
The Ashok Leyland 3520 8x2 LA MAV Truck has 12 wheels in total.

3520 8x2 LA MAV Variants

The Ashok Leyland 3520 8x2 LA MAV is available in 5 variants. The base model is 5750/(24 ft) and the top variant is 6600/ (32 ft).

Competitors

The competitors of the Ashok Leyland 3520 8x2 LA MAV are Tata LPT 3518, Bharat Benz 2823C, Tata Signa 5530.S, and Eicher Pro 6041.

Ashok Leyland 3520 8x2 LA MAV Price in India

The Ashok Leyland 3520 8x2 LA MAV price in India starts at Rs. 37.27 Lakh.

Ashok Leyland 3520 8x2 LA MAV Variants

Ashok Leyland has launched Ashok Leyland 3520 8x2 LA MAV truck in 5 variants in India and these Ashok Leyland 3520 8x2 LA MAV truck variants are Ashok Leyland 3520 8x2 LA MAV 5750/(24 ft), Ashok Leyland 3520 8x2 LA MAV 6300/(26 ft), Ashok Leyland 3520 8x2 LA MAV 6600/(28 ft), Ashok Leyland 3520 8x2 LA MAV 6600/(30 ft), Ashok Leyland 3520 8x2 LA MAV 6600/(32 ft). Ashok Leyland comes in Not available /35000 Kg, 5750 mm, 9710 mm, ₹ 3726976 - 4060000 Ashok Leyland is available in the H series CRS with iGen6 Technology mm option. If we talk about Ashok Leyland, it features in 200. Ashok Leyland 3520 8x2 LA MAV 5750/(24 ft) comes with 200 HP engine power and undefined cc engine capacity. In contrast, Ashok Leyland 3520 8x2 LA MAV 6300/(26 ft) features 200 HP engine power and undefined cc engine capacity. Ashok Leyland 3520 8x2 LA MAV 5750/(24 ft) has 35000 Kg GVW and Not available payload capacity, while Ashok Leyland 3520 8x2 LA MAV 6300/(26 ft) features the GVW of 35000 Kg kg and payload capacity of Not available. Moreover, Ashok Leyland 3520 8x2 LA MAV 5750/(24 ft) ex-showroom price commences from 3726976 - 4060000, whereas Ashok Leyland 3520 8x2 LA MAV 6300/(26 ft)’s ex- showroom price begins from 3726976 - 4050000.

Variants	Ex-showroom Price
Ashok Leyland 3520 8x2 LA MAV 5750/(24 ft) 200 HP, Manual, 5660 cc	NaNGet March Offer
Ashok Leyland 3520 8x2 LA MAV 6300/(26 ft) 200 HP, Manual, 5660 cc	NaNGet March Offer
Ashok Leyland 3520 8x2 LA MAV 6600/(28 ft) 200 HP, Manual, 5660 cc	NaNGet March Offer
Ashok Leyland 3520 8x2 LA MAV 6600/(30 ft) 200 HP, Manual, 5660 cc	NaNGet March Offer
Ashok Leyland 3520 8x2 LA MAV 6600/(32 ft) 200 HP, Manual, 5660 cc	NaNGet March Offer

Ashok Leyland 3520 8x2 LA MAV Full Specifications

Ashok Leyland 3520 8x2 LA MAV is a popular truck in India under 200 HP. It is fitted with Diesel and has an engine capacity of 5660 cc. This truck model is equipped with Manual and 6-Speed gearbox to give an effortless performance on dry to wet farm fields. Ashok Leyland has also offered its buyers a Power Steering and 375 Ltr fuel tank capacity.

Fuel Type

Diesel

Power

200

Torque

700

Clutch Type

380 mm dia - Single dry plate, organic clutch with air assisted hydraulic booster

Emission Norm

BS-VI

Type

Manual

Engine Capacity

5660

Engine Type

H series CRS with iGen6 Technology

Gearbox

6-Speed

No of Cylinders

Gross Vehicle Weight

35000

Length

9710

Width

2570

Height

3165

Wheelbase

5750

Fuel Tank Capacity

375

Deck length

24 ft

Body Type

Cowl Chasis/CBC/FSD/HSD

Cabin Type

Day and Sleeper Cabin

Chassis

Chassis with Cabin

Suspension - Front

Semi-elliptic multi leaf/Parabolic springs (optional)

Suspension - Rear

Non-reactive suspension with Slipper ended suspension (optional)

Turning Radius

9800

Brakes

Air Brakes

Front Tyre Size

295/90 R20

Rear Tyre Size

295/90 R20

No of Tyres

Parking Brake

Yes

Front Axle

Forged I section - Reverse Elliot type Optional Unitized wheel bearings Anti roll bar

Rear Axle

Fully floating single speed rear axle, RAR 5.57/ 5.83 1. Optional Unitized wheel bearings

Application

Market load, POL tanker,Cement, Bulker

Warranty

Max Speed

Gradeability

14.05

Mileage (kmpl)

3.5

	ashok-leyland 3520 8x2 LA MAV	bharat-benz 1923C	bharat-benz 2823C	bharat-benz 2823R
Ex-showroom Price	37.27 Lakh	30.87 Lakh	37.80 Lakh	30.64 Lakh
No. of Cylinders	6	6	6	6
Gear Box	6-Speed	6-Speed	6-Speed	6-Speed
Clutch	380 mm dia - Single dry plate, organic clutch with air assisted hydraulic booster	395mm Single dry plate hydraulic control	395mm Single dry plate hydraulic control	395mm Single dry plate hydraulic control
Warranty	NA	6 Years / 6000 Hours	6 Years / 6000 Hours	6 Years / 6 Lakh Km

View All Comparison

Ashok Leyland 3520 8x2 LA MAV Similar Trucks

BharatBenz 1923C

₹ 30.87 Lakh

BharatBenz 2823C

₹ 37.80 Lakh

BharatBenz 2823R

₹ 30.64 Lakh

BharatBenz 2828C

₹ 36.86 Lakh

BharatBenz 2828CH

₹ 48.77 Lakh

BharatBenz 3523R

₹ 36.26 Lakh

Ashok Leyland 3520 8x2 LA MAV Brochure

Download Ashok Leyland 3520 8x2 LA MAV brochure in just one click to view specification and features.

Latest News, Reviews and Advice from our Experts

Ashok Leyland Unveiled Ecomet STAR 1115 11-Tonne CNG Truck in Indian Truck Market

The Ashok Leyland Ecomet STAR 1815 Truck is now available in India

Ashok Leyland introduces a 250 HP 4V engine to its AVTR lineup.

Collaboration between Ashok Leyland and Kenya Commercial Bank for flexible financing options

Mahindra & Mahindra launched the New Jeeto Plus CNG CharSau, which is priced at Rs. 5.26 lakh.

View All News

Ashok Leyland 3520 8x2 LA MAV Dealers in

No dealers available for your current city or brand, Please change the city or choose a different brand

Truck Loan Bole Toh Sirf CMV360

For Ashok Leyland 3520 8x2 LA MAV

Per Month EMI
₹0

Principal Amount
₹18,60,000

Interest Amount
₹0

*Interest calculated at 12.57% for 7 years period on the Base frame value

All about commercial vehicle loan

Frequently Asked Questions

The starting price of the Ashok Leyland 3520 8x2 LA MAV is 37.27 Lakh (excluding registration, insurance, and RTO) for base variants but for the top variant, its prices reach 40.70 Lakh (excluding registration, insurance, and RTO) Click here Ashok Leyland 3520 8x2 LA MAV to check the on-road price for the Ashok Leyland 3520 8x2 LA MAV

Ashok Leyland 3520 8x2 LA MAV is one of the fuel efficient cargo trucks in India. It provides 3.5 kmpl on city and highway roads and maintains a superior driving experience.

Ashok Leyland 3520 8x2 LA MAV is introduced in 5 variants such as 5750/(24 ft),6300/(26 ft),6600/(28 ft),6600/(30 ft),6600/(32 ft).

Variants	GVW	Ex. Showroom Price
Ashok Leyland 3520 8x2 LA MAV 5750/(24 ft)	35000 Kg	NaN
Ashok Leyland 3520 8x2 LA MAV 6300/(26 ft)	35000 Kg	NaN
Ashok Leyland 3520 8x2 LA MAV 6600/(28 ft)	35000 Kg	NaN
Ashok Leyland 3520 8x2 LA MAV 6600/(30 ft)	35000 Kg	NaN
Ashok Leyland 3520 8x2 LA MAV 6600/(32 ft)	35000 Kg	NaN

The maximum speed of a Ashok Leyland 3520 8x2 LA MAV cargo truck is 80 km/h.

Ashok Leyland 3520 8x2 LA MAV is fitted with a highly reliable Diesel engine that has the capacity to produce 200 HP engine power. Benefits of High Engine Power: Trucks with high engine power mostly deliver hurdle-free performance in varied road conditions, and they also move comparatively higher payloads from one place to another.

Model	Transmission	Max Power
Ashok Leyland 3520 8x2 LA MAV	Manual	200 HP

No, Ashok Leyland has provided Manual transmission in Ashok Leyland 3520 8x2 LA MAV that fits well with its engine and helps the driver get better drive performance.

Ashok Leyland 3520 8x2 LA MAV has a wheelbase of 5750 mm.

We’ve not registered ground clearance for Ashok Leyland 3520 8x2 LA MAV

Ashok Leyland 3520 8x2 LA MAV is designed using the latest technology and innovation solutions to give it an ideal dimension to ensure it performs well. It has 9710 length, 2570 width, 3165 height, 5750 wheelbase, and Ashok Leyland 3520 8x2 LA MAV has ground clearance of We’ve not registered ground clearance for Ashok Leyland 3520 8x2 LA MAV ground clearance.

Ashok Leyland 3520 8x2 LA MAV Dimensions
Length	9710 mm
Width	2570 mm
Height	3165
Wheelbase	5750
Ground Clearance	We’ve not registered ground clearance for Ashok Leyland 3520 8x2 LA MAV

Ashok Leyland 3520 8x2 LA MAV is launched in the Indian market in a single colour option: Blue.

Ashok Leyland has provided a NA warranty on its popular truck, Ashok Leyland 3520 8x2 LA MAV.

Ashok Leyland 3520 8x2 LA MAV is a top end truck under 35000 Kg GVW category and features a 5660 HP engine, which makes it a top competitor of No competitor available.
