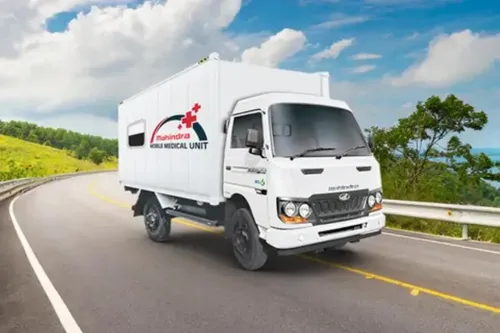

Mahindra Jayo Mobile Medical Unit

Fuel Type

Diesel

Power (HP)

80

Torque (Nm)

220

Clutch (Diameter)

260 mm Dia

Emission Norm

BS-VI

Transmission Type

Manual

Engine Capacity (cc)

2500

Engine Type

mDi Tech, 4 Cylinders, BS-VI with ECR+SCR Technology, D25-60 kW@3200 r/min

Gearbox

5+1 Speed Overdrive Gearbox

Number of Cylinders

4

Max Speed (Km/h)

94

Mileage (Kmpl)

N/A

Battery

12V, 100Ah

Gradeability (%)

30

Body Type

Box Body

Cabin Type

1.7 m Narrow Day Cab

Chassis Type

Strong Chassis

Tiltable Cabin

Fixed Cab

Suspension - Front

Semi Elliptical (Springs Type)

Suspension - Rear

Semi Elliptical (Springs Type)

Turning Radius (mm)

5750

Ground Clearance (mm)

190

Fuel Tank Capacity (Ltr)

60

Gross Vehicle Weight (Kg)

4900

Width (mm)

Not Available

Length (mm)

4904

Height (mm)

2885

Wheelbase (mm)

2654

Kerb Weight (Kg)

1900

Payload (Kg)

3000

Superstructure Length (External) (mm)

3220

Superstructure Width (External) (mm)

1920

Superstructure Height (External) (mm)

2035

Brakes

Hydraulic Brakes (Drum)

ABS

---

Parking Brake

Yes

Number of Tyres

4

Front Tyre Size

7.5 R16

Rear Tyre Size

7.5 R16

Steering Type

Power Steering

Warranty

3 Years/3 Lakh Km

Telematics

---

Seat Belts

Yes

Air Conditioner (A/C)

Optional

Cruise Control

No

Seat Type

Standard Seats

Adjustable Driver Seat

Yes

Arm-rest

No

Driver Information Display

Yes

Tiltable Steering

---

Tubeless Tyres

---

Navigation System

No

Seating Capacity

Driver + 1 Passenger

Hill Hold

No

Applications

Mobile Medical Unit, Mobile Ophthalmic Van, Mobile Dental Clinic, Mobile Blood Collection Van, Mobile Health Diagnostic Van, Mobile Vaccine Centre, Mobile Dialysis Unit, Mobile X-ray Van, Mobile Audiology Clinic, MMU on Mahindra Jayo cares for India

Furniture

Doctors Table, Examination bed with storage space with curtains Chairs & Round stool, Storage of drugs, Equipment, chemicals, etc., Waste collection bins - bags/as per waste management specifications, Attendant seat with storage space

Fittings and Plumbing

Hooks for an intra venous bottle, Oxygen cylinder mounting provision, Portable stretcher, Medicine cabinet/Cupboards, Small refrigerator, Basins with Handwash & towel hanger, Water storage tank, Generator/DG Set & Inverter, Foldable Staircase with grab rail, Internal Lights & Fan, Drinking water container provision, External blinkers - As per AIS125, External charging socket & plug, Overhead cabinet, All windows with foldable blinds/Curtains, Display board, Canopy/Waiting area, Exhaust Fan

Accessories

Weighing Machine, Fire Extinguisher, Additional Battery 12V, 100 Ah
