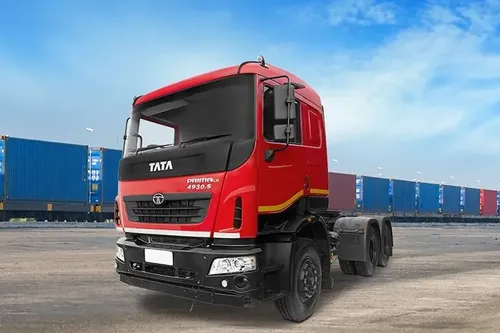

Tata Prima LX 4930.S

Fuel Type

Diesel

Power (HP)

296

Torque (Nm)

1100

Clutch Type

430 Dia, Single plate, Dry friction type

Emission Norm

BS-IV

Type

Manual

Engine Capacity (cc)

6700

Engine Type

Cummins ISBe 6.7L -300 BS4

Gearbox

9-Speed

No of Cylinders

6

Max Speed (km/h)

80

Mileage (kmpl)

-

Gradeability (%)

17

Body Type

Trailer

Cabin Type

Slepper Cabin

Chassis

-

Tiltable Cabin

Yes

Suspension - Front

Parabolic leaf Spring

Suspension - Rear

Bogie suspension with torque rods and V-rod

Turning Radius (mm)

7110

Ground Clearance (mm)

-

Fuel Tank Capacity (Ltr)

400

Width (mm)

2585

Gross Vehicle Weight (Kg)

49000

Length (mm)

6827

Height (mm)

-

Wheelbase (mm)

3890

Kerb Weight (Kg)

-

Payload (Kg)

-

Brakes

Air brakes with dual treadle valve, With automatic slack adjuster

ABS

Yes

No of Tyres

6

Front Tyre Size

10R20-16PR

Rear Tyre Size

10R20-16PR

Power Steering

Yes

Adjustable Driver Seat

Yes

Parking Brake

Yes

Front Axle

Forged I Beam, Reverse Elliot Type

Rear Axle

RA 109 SRT

Telematics

Yes

Seat Belts

Yes

Air Conditioner (A/c)

Yes

Cruise Control

No

Seat Type

High headrest seat

Arm-rest

No

Driver Information Display

-

Tiltable Steering

Yes

Tubeless Tyres

No

Navigation System

No

Seating Capacity

Driver + 2 Passenger

Hill Hold

No
