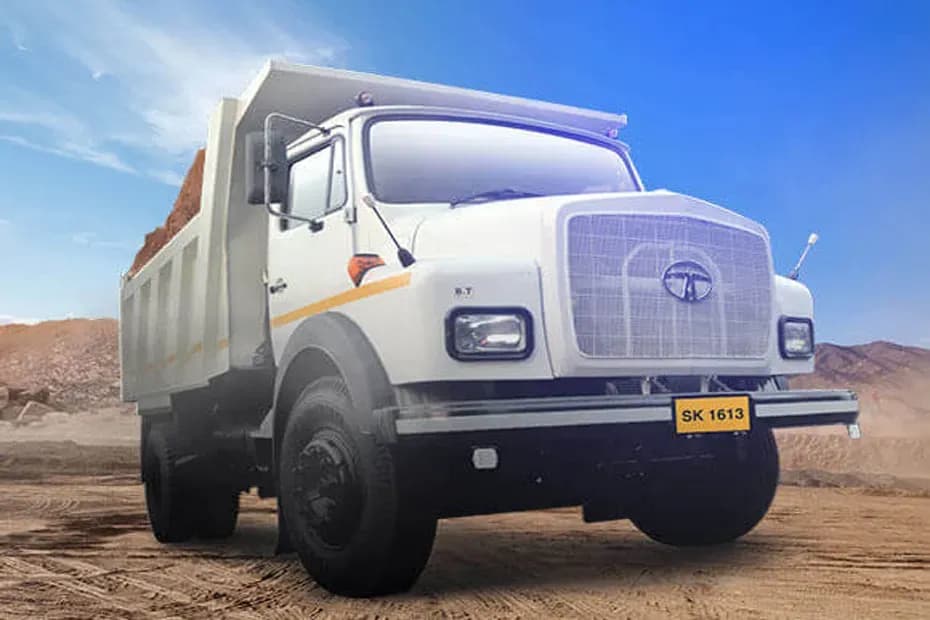

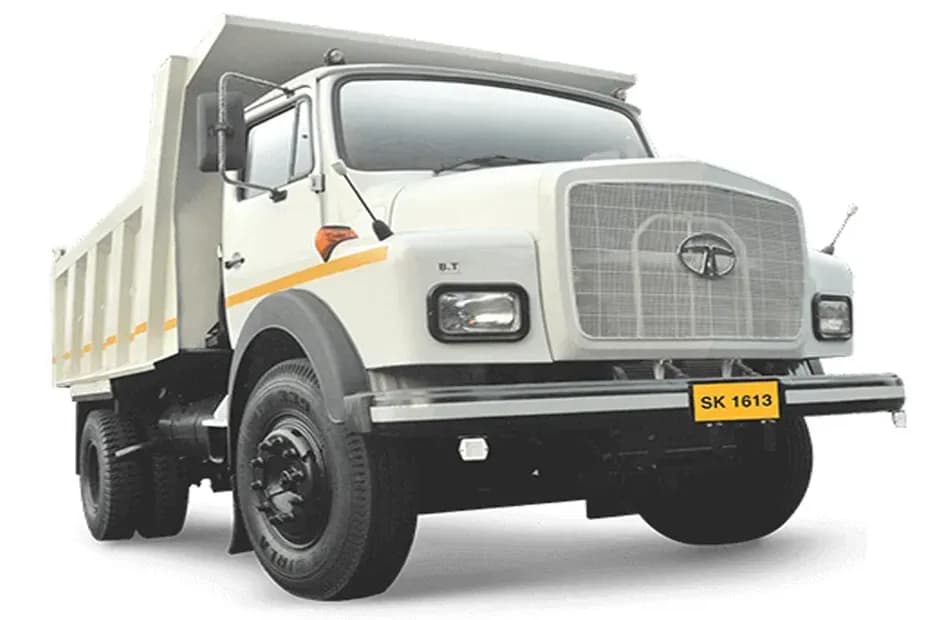

Tata SK 1613

Fuel Type

Diesel

Power (HP)

134

Torque (Nm)

490

Clutch Type

352 mm, Single plate Dry friction type

Emission Norm

BS-IV

Type

Manual

Engine Capacity (cc)

5675

Engine Type

CRi6-75, BHARAT STAGE IV

Gearbox

6 Forward + 1 Reverse

No of Cylinders

6

Max Speed (km/h)

79

Mileage (kmpl)

-

Gradeability (%)

26

Body Type

Box Body

Cabin Type

SFC Day cab

Chassis

-

Tiltable Cabin

-

Suspension - Front

Semi-elliptical leaf springs

Suspension - Rear

Semi-elliptical leaf springs

Turning Radius (mm)

6800

Ground Clearance (mm)

239

Fuel Tank Capacity (Ltr)

150

Width (mm)

2434

Gross Vehicle Weight (Kg)

16200

Length (mm)

6100

Height (mm)

2875

Wheelbase (mm)

3225

Kerb Weight (Kg)

-

Payload (Kg)

-

Brakes

Air Brake

ABS

Yes

No of Tyres

6

Front Tyre Size

10.00 x 20 -16 PR

Rear Tyre Size

10.00 x 20 -16 PR

Power Steering

Yes

Adjustable Driver Seat

Yes

Parking Brake

Yes

Front Axle

Reverse Elliot type ,I beam

Rear Axle

RA - 109 RX with RAR: 5.57

Telematics

No

Seat Belts

Yes

Air Conditioner (A/c)

No

Cruise Control

No

Seat Type

Standard

Arm-rest

No

Driver Information Display

-

Tiltable Steering

-

Tubeless Tyres

No

Navigation System

-

Seating Capacity

Driver + 1 Passenger

Hill Hold

-
